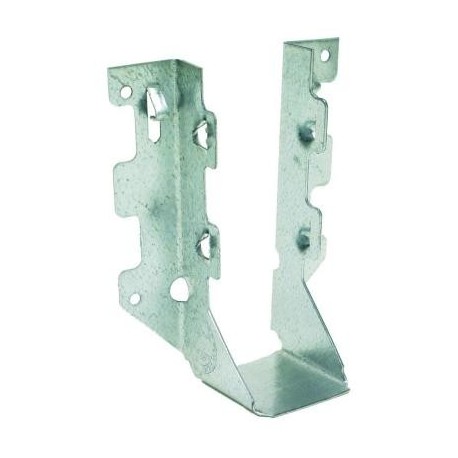

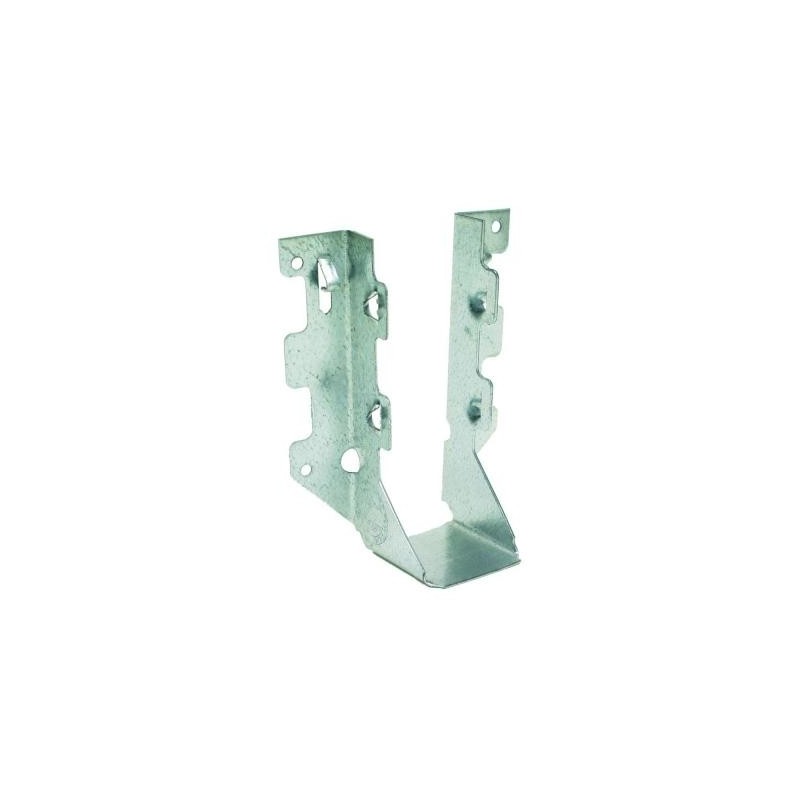

Z-MAX 2 in. x 6 in. Galvanized Double Shear Face Mount Joist Hanger

9053364

New product

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field skewable and slopeable options. LUS joist hangers provide a connection between a joist and header.

More details

R 28.75 tax incl.

The minimum purchase order quantity for the product is 2

Add to projects

More info

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field skewable and slopeable options. LUS joist hangers provide a connection between a joist and header.

  • Patented double-shear nailing design provides greater strength with fewer nails
  • Speed prongs for fast and easy installation
  • Angled joist nailing easier in tight spaces
  • Do not bend or remove tabs
  • Fits Joist Size: 2 in. x 6 in. and 2 in. x 8 in.
  • Made from 18-Gauge steel
  • Z-MAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
  • Install with 10d common nails or #9 x 2-1/2 in. Strong-Drive SD screws
